New BGA Rework Machine For Asic Hash Board Repair
This is a new-designed in 2022, which was upgraded from old DH-A2E, it is much smarter, safer,more reliable and higher efficiency for BGA QFN and POP,etc. of computer, hash board and car's GPU CPU and so on.
Lýsing

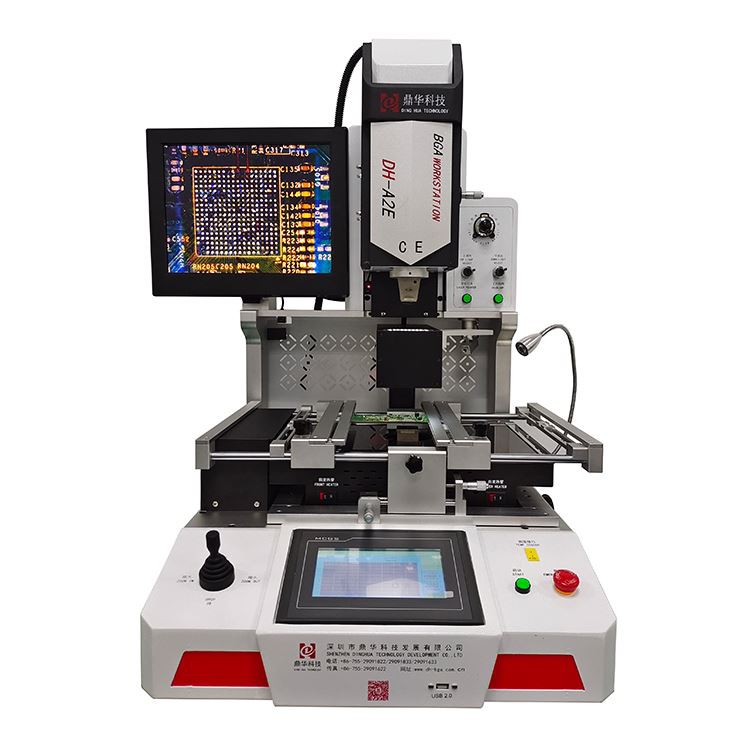

DH-A2E Automatic BGA rework machine for asic hash board repair
This model DH-A2E is mature designed, which has PLC for its motion controlling, PID for temperature caculating and
visible optical alignment function for various chip's soldering/mounting.etc. Used in miner machine, automobile,
mobile phone and computer.etc. industries for repairing or assembling.
New designed BGA rework machine DH-A2E
1. Parameter of Automatic BGA rework machine for asic hash board repair
| Power supply | 220V 50/60Hz |
| Rated power | 5000W |
| Upper heater's power | 1200W |
| Bottom heater's power | 1200W |
| IR power | 2400W |
| PCB position | V-groove,PCB-platform with fixtures is movable at X-axis |
| Temperature control | PID caculating, thermocouple cloosed-loop |
| Mounting accuracy | 0.001mm |
| Min chip space | 0.01mm |
| Temperature accuracy | 1 degree |
| Thermocouple | 1 pcs( optional) |
| Display | 15 inches |
| Touchscreen | 7 inches |
| Optical camera | colour-splite |
| Motion | PLC copntrol |
| PCB size | Min 10*10mm, Max 450*400mm |
| Chip size | 1*1~80*80mm |
| Dimension | 600*700*850mm |
| Net weight | 70kg |
2. Application of Automatic BGA rework machine.
These chips BGA,PGA,POP,BQFP,QFN,SOT-223,PLCC,TQFP,TDFN,TSOP,PBGA,CPGA
as above are a part of them which can be repaired by the automatic BGA rework machine
DH-A2E.chip reballing machine

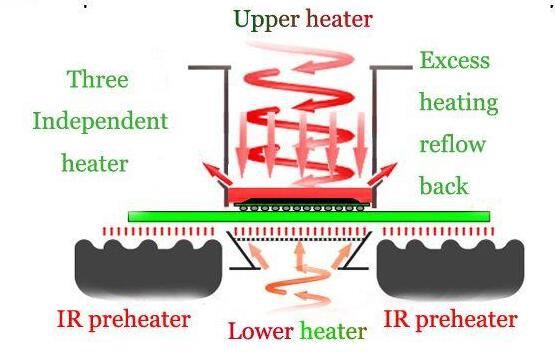

3.Fundamental of the automatic BGA rework machine with optical alignment for mounting
There are 2 hot-air heaters for soldering or desoldering, and 1 large IR heating area for large PCBa being
preheated, which can make PCB protected at the most certain. bga reflow machine
4. Motion of automatic BGA rework machine for computer, gamel console and miner machine's motherboard reparing
Installed with the PLC of Mitsubishi, which can supply stable movement for mounting of chip( to on a motherboard),
movement accuracy is up to 0.001mm . irda smd bga rework station

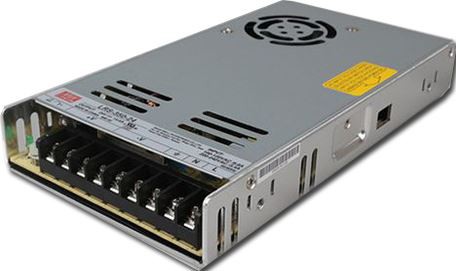

5. Power-supply of auto BGA repair station with optical CCD alignment system for various of chips and motherboards.
Low-voltage supplied by Meanwell can guarantee whole machine runs smoothly.

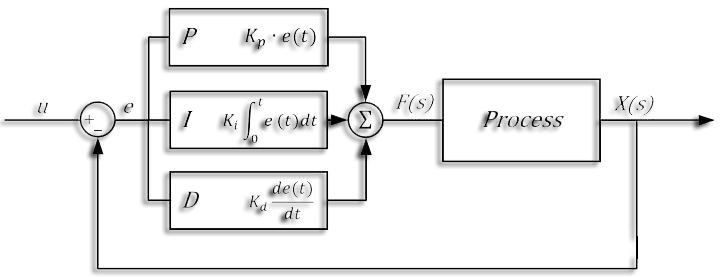

6. PID for temperature caculating of automatic BGA rework machine DH-A2E
PID（proportion integral derivative）
It can compensate temperature's deviation which can make sure the machine's temperature accuracy is up to
plus /- 1 degree ,thereby, chips and mothebroard can be protected from being higher temperatures. automatic bga reballing machine
5..After-sales service of the BGA rework machine for macbook iphone laptop and car gpu repairing
Warranty: 12 months or more (depends on customer's requirement)
Service way: online support or video-call, dispatching engineers to on-site/filed is available as well.
Service cost: free parts in warraty period, free service but a little price-cost after warranty.
ball ic soldering machineDH-A2E Automatic BGA rework machine for asic hash board repair DH-A2E Automatic BGA rework machine for asic hash board repairDH-A2E Automatic BGA rework machine for asic hash board repair
6. Shipping term of DH-A2E Automatic BGA rework machine for asic hash board repair
Min order: 1 set, we suggest using express way for less quantity.
If massive quantity, sea or rail wai shipping is availble.
EXW, FOB or DAP and DDP etc. are OK.
7. Video Demo of DH-A2E Automatic BGA rework machine for asic hash board repair
8. Contact of DH-A2E Automatic BGA rework machine for asic hash board repair
WhatsApp/Wechat/Mob: plus 86 157 6811 4827
Email: john@dinghua-bga.com
